A compact face terminal.
A 5-inch display and Linux platform provide a compact starting point for face authentication and access workflows. Confirm the credential modules, application and network configuration for your project.
Face Terminals
FCV5002
Face authentication terminal
Explore FCV5002 for your face terminals requirements. Contact our team to confirm the configuration for your project.
Explore DejaOS development ↗Designed for your workflow.
FCV5002
Face authentication terminal
Explore FCV5002 for your face terminals requirements. Contact our team to confirm the configuration for your project.
Explore the specifications ↓
Specifications at a glance.
| Operating system | Linux |
|---|---|
| Display | 5-inch LCD · 480 × 854 pixels |
| Processor | Dual-core ARM Cortex-A7 · 1 GHz |
| Storage | 8 GB |
| Interfaces | 10/100M Ethernet, RS485 and Wiegand 26/34 |
| Mobile network | 4G is an optional expansion; confirm regional availability |
| Power input | 9–24 V DC · 12 V recommended |
Modules, accessories and software are selected for the project. Features described as options are not included in every configuration.
Plan the installation.

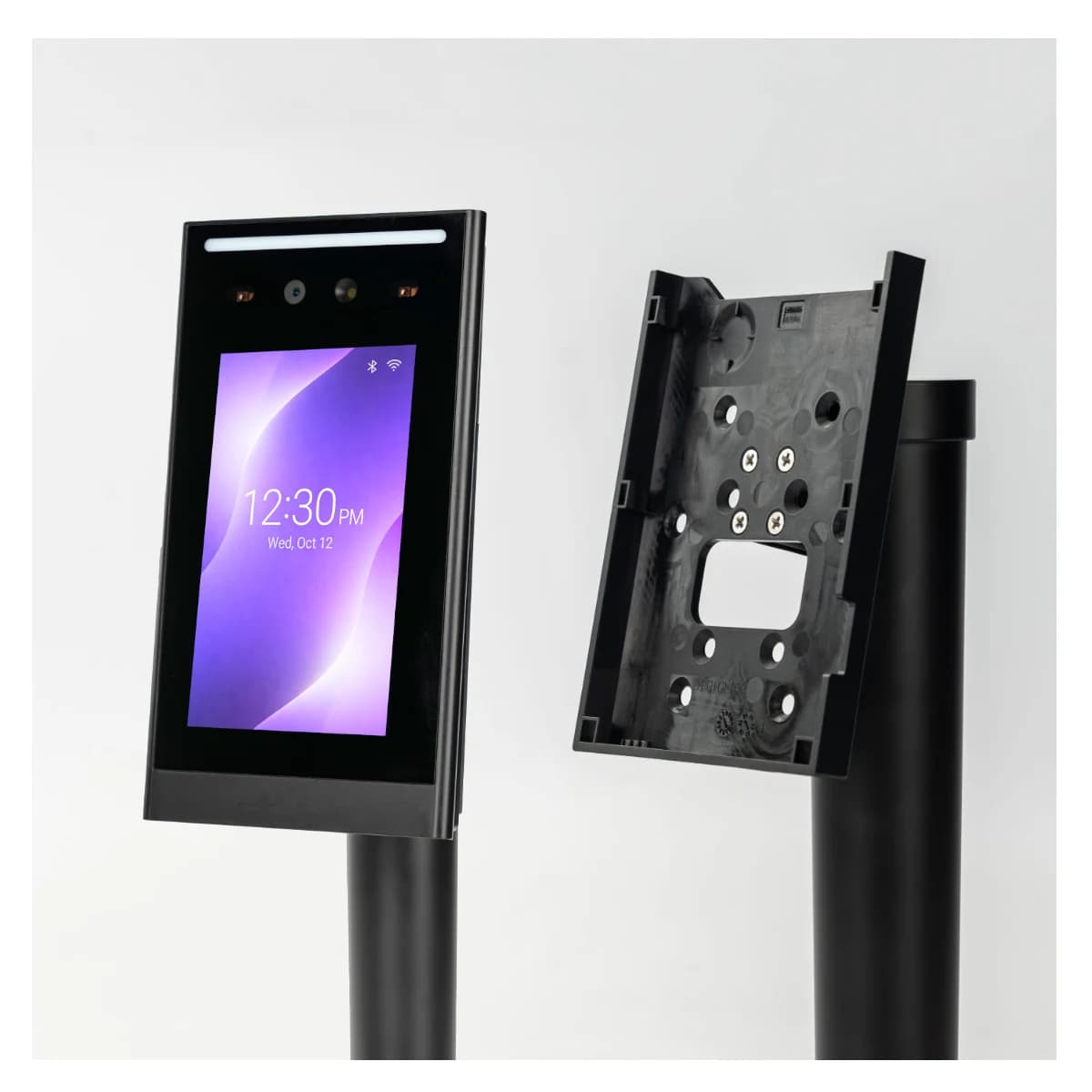

- Choose the mounting arrangement for the installation point and confirm the bracket and cable routing.
- Plan Ethernet, RS485 or Wiegand connections with your system integrator. Confirm any 4G expansion and the power supply before ordering.
Manuals & specifications.
Looking for the FCV5002 manual, specification or installation drawing? Tell us which information you need and we will help identify the right document.
Request documentsA few things worth knowing.
What lighting conditions should we consider?
Strong backlight, direct sunlight, reflections and close-range lighting can reduce capture quality. Evaluate the terminal in its intended position and avoid pointing the camera directly toward a bright window or concentrated light source.
What kind of enrollment photograph should we use?
Use a clear, front-facing JPG without beauty filters, heavy makeup, sunglasses, a mask or other facial obstruction. File size and image dimensions can vary by software and model, so confirm the current import requirements before preparing a large enrollment set.
What should we confirm before connecting a face terminal to the network?
Confirm whether the selected configuration uses wired networking, Wi-Fi or another connection method, then collect the network and platform settings required by that system. A local network connection does not by itself prove that the device is connected to the management service, so verify both states separately.
What is DejaOS used for?
DejaOS provides a JavaScript development environment for supported devices. Developers can build device interfaces and application workflows using the modules available for the selected hardware, SDK and firmware.
Does every Feocey product support DejaOS?
No. Check support for the exact overseas model and configuration before choosing a development device. Use the current official documentation and confirm the matching SDK, firmware and hardware modules.
What should I share when choosing a device?
Tell us which credentials people will use, where the device will be installed, which interfaces are required and what should happen in the software workflow. A mounting drawing, host-equipment description or simple process diagram helps us identify the questions that must be confirmed before recommending a configuration.
FCV5002 / Your next step
Let’s find your configuration.
Tell us your application, installation environment and quantity. We can help with product selection, documentation and the next steps.
