A clear point of interaction.
An 8-inch display brings the workflow to the entrance. Choose the credential modules, application and mounting configuration around your project.
Face Terminals

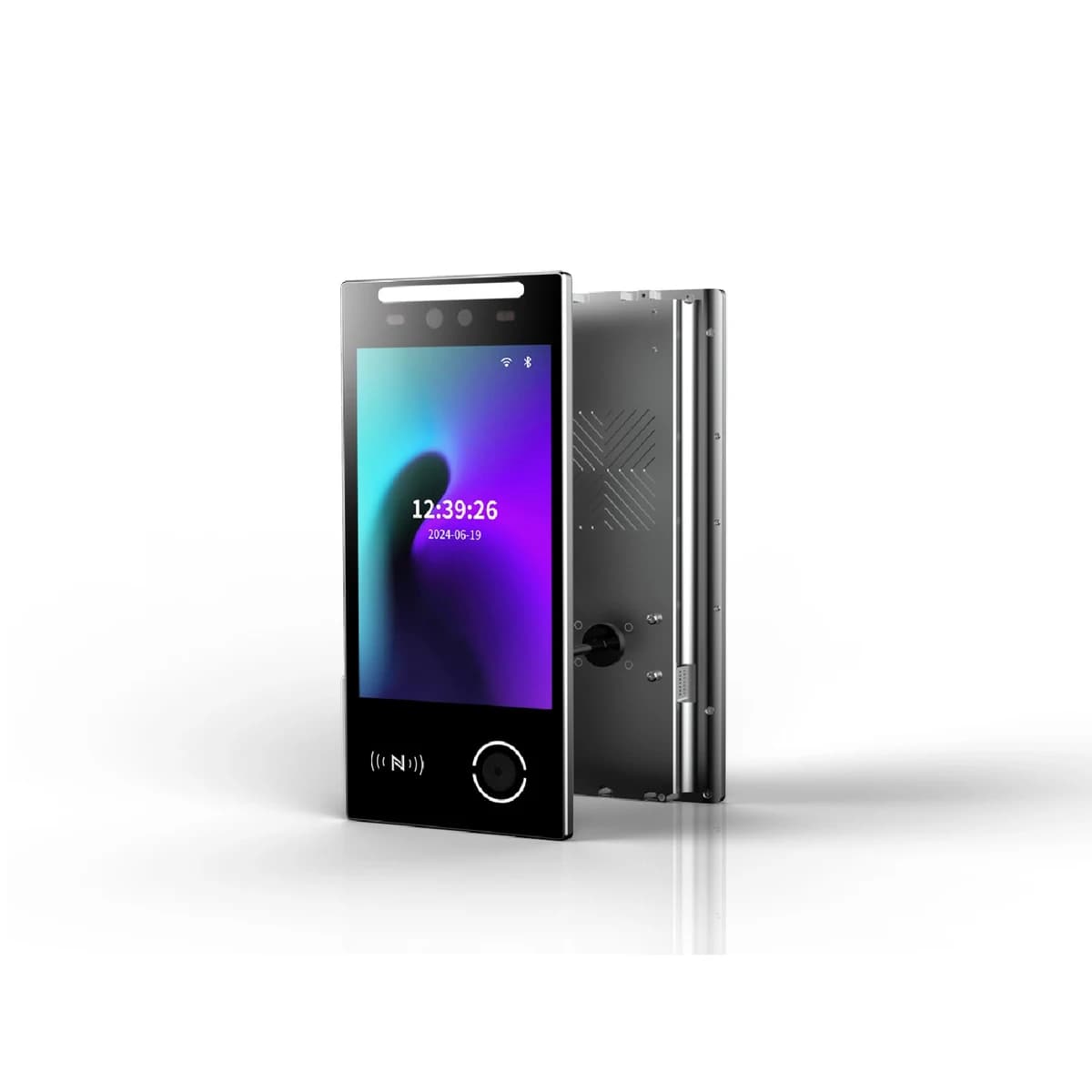

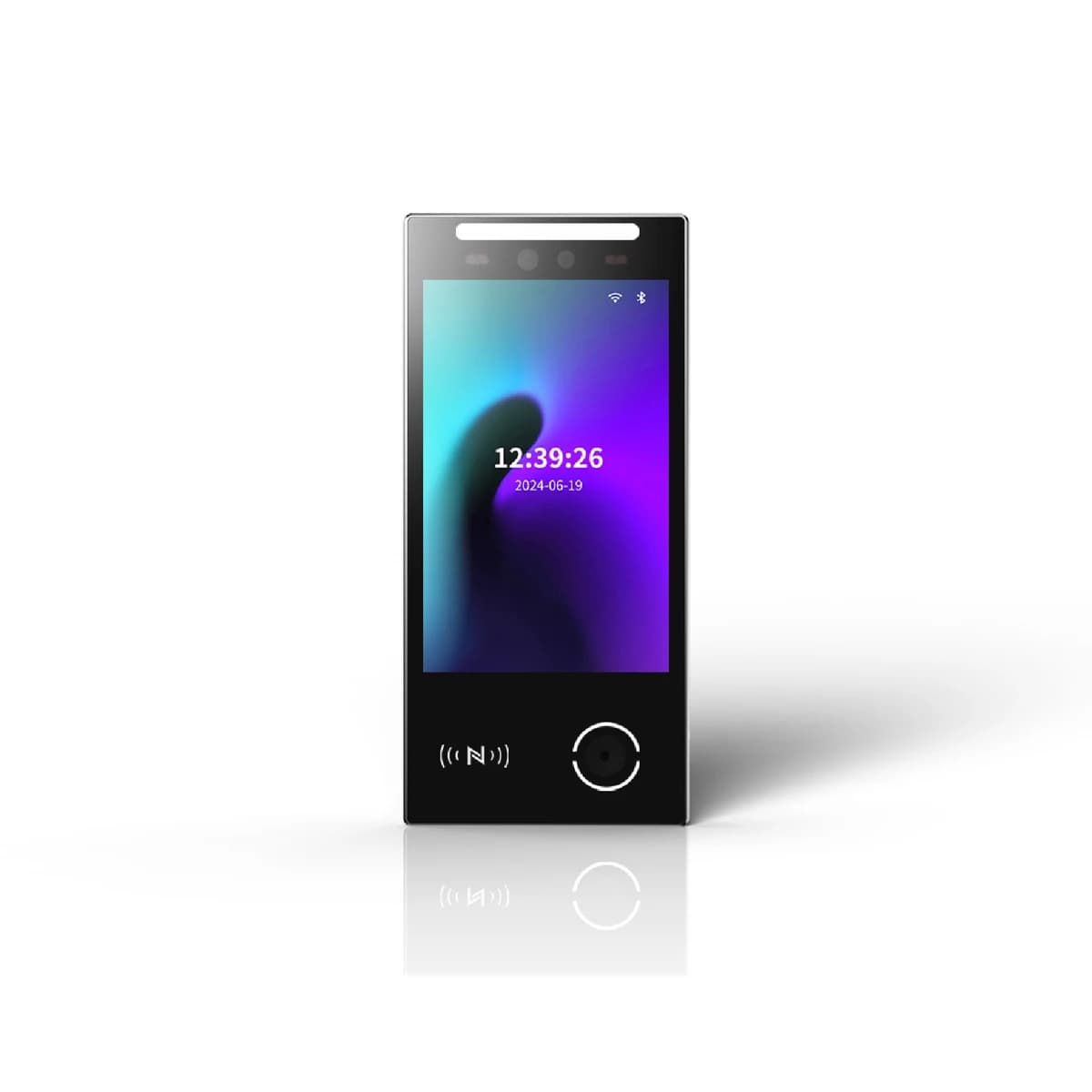

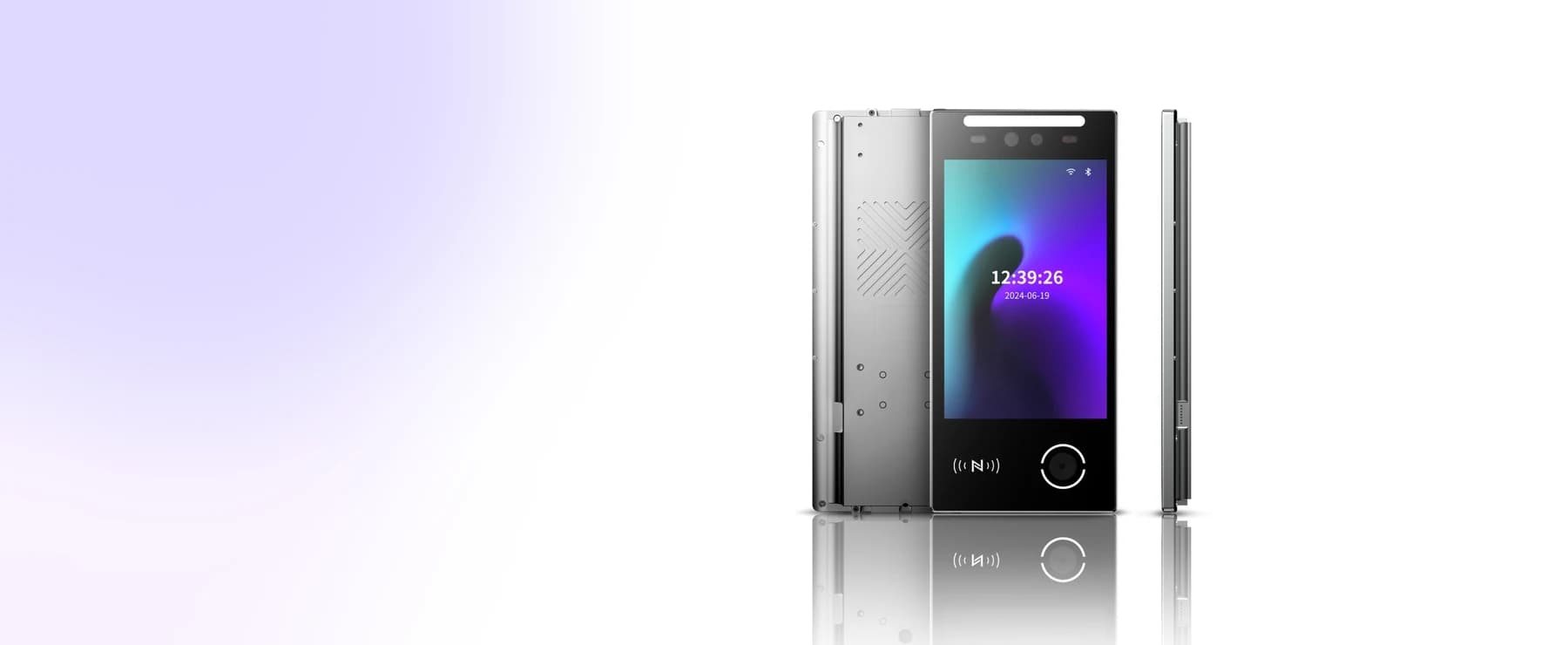

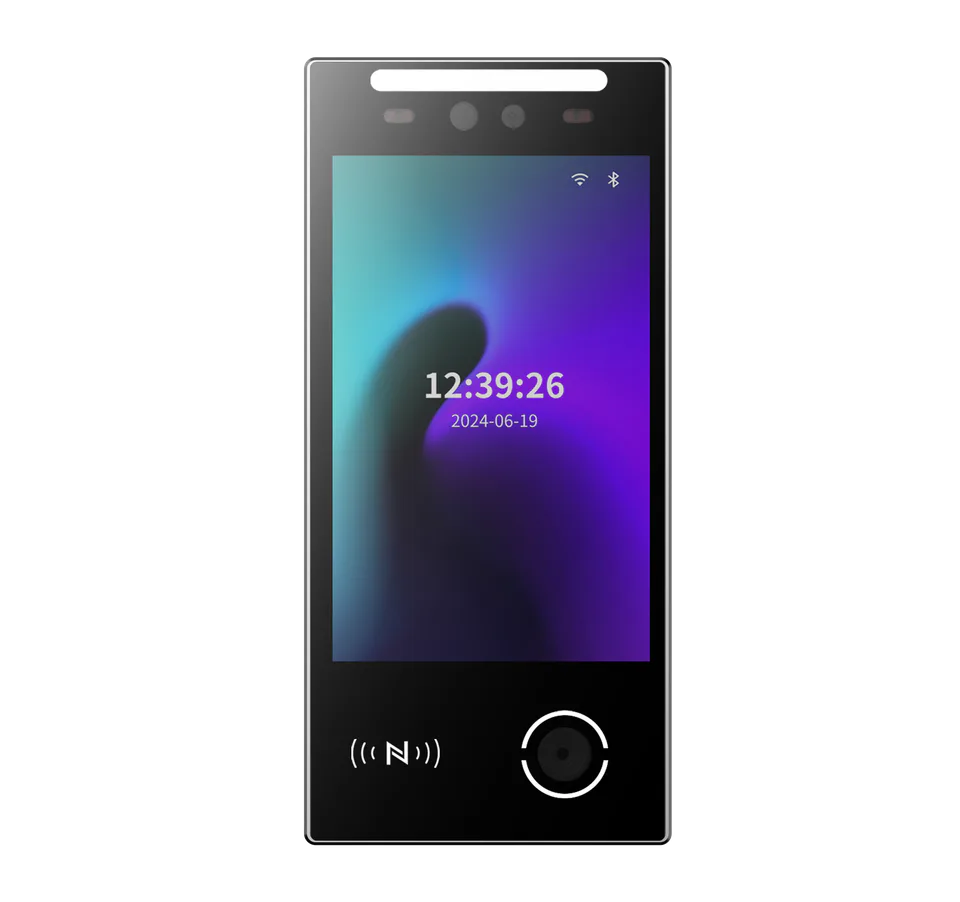

FCV4905
8-inch face authentication terminal
Visible identity, visitor and access workflows
Explore DejaOS development ↗Identity at the point of entry.
An 8-inch display supports visible access and visitor interactions. Face, QR code, card and password availability depends on the chosen configuration and application.
Choose how it fits your entrance.

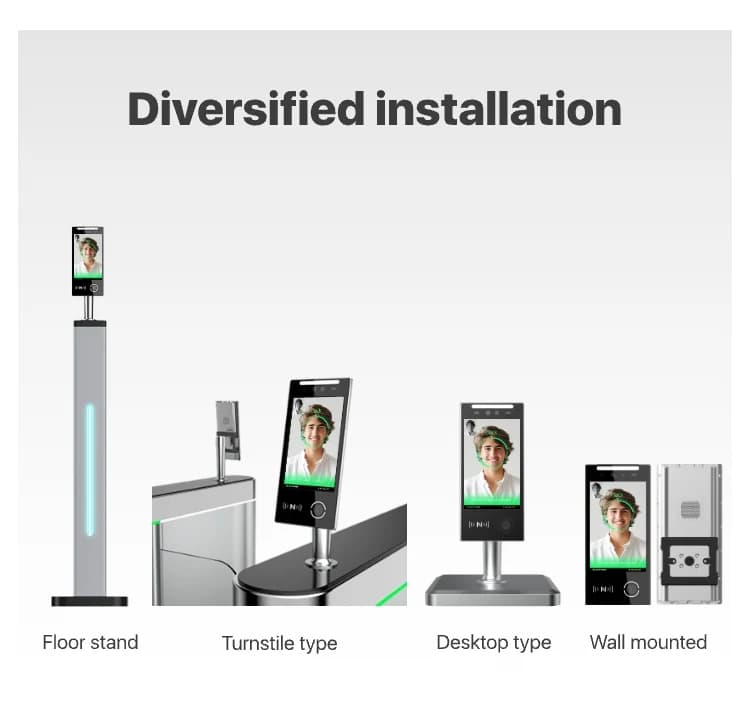

Wall, pedestal, desktop and floor-stand arrangements suit different installation layouts. Mounting accessories are selected separately with the product configuration.
Specifications at a glance.
| Operating system | Linux |
|---|---|
| Display | 8-inch touch screen · 800 × 1280 pixels |
| Processor | Dual-core ARM Cortex-A7 · 1 GHz |
| Storage | 8 GB; expanded storage is configuration dependent |
| Host interfaces | Ethernet, RS485 and Wiegand 26/34; configuration dependent |
| Wireless options | Wi-Fi and 4G options; confirm modules and regional availability |
| Power input | 9–24 V DC · 12 V recommended |
Modules, accessories and software are selected for the project. Features described as options are not included in every configuration.
Plan the installation.
- Confirm the wall bracket or pedestal assembly and cable exit position against the installation drawing for your order.
- Confirm the credential modules, network option and access-controller wiring together. Outdoor suitability must be checked for the specific configuration.
Start with your application.
- Visitor entry
- Employee access and attendance
- Video intercom workflows
- Member and venue check-in
Application directions for discussion. Compatibility and software scope are confirmed for the selected configuration.
Explore use cases →Manuals & specifications.
Looking for the FCV4905 manual, specification or installation drawing? Tell us which information you need and we will help identify the right document.
Request documentsA few things worth knowing.
What lighting conditions should we consider?
Strong backlight, direct sunlight, reflections and close-range lighting can reduce capture quality. Evaluate the terminal in its intended position and avoid pointing the camera directly toward a bright window or concentrated light source.
What kind of enrollment photograph should we use?
Use a clear, front-facing JPG without beauty filters, heavy makeup, sunglasses, a mask or other facial obstruction. File size and image dimensions can vary by software and model, so confirm the current import requirements before preparing a large enrollment set.
What should we confirm before connecting a face terminal to the network?
Confirm whether the selected configuration uses wired networking, Wi-Fi or another connection method, then collect the network and platform settings required by that system. A local network connection does not by itself prove that the device is connected to the management service, so verify both states separately.
What is DejaOS used for?
DejaOS provides a JavaScript development environment for supported devices. Developers can build device interfaces and application workflows using the modules available for the selected hardware, SDK and firmware.
Does every Feocey product support DejaOS?
No. Check support for the exact overseas model and configuration before choosing a development device. Use the current official documentation and confirm the matching SDK, firmware and hardware modules.
What should I share when choosing a device?
Tell us which credentials people will use, where the device will be installed, which interfaces are required and what should happen in the software workflow. A mounting drawing, host-equipment description or simple process diagram helps us identify the questions that must be confirmed before recommending a configuration.
FCV4905 / Your next step
Let’s find your configuration.
Tell us your application, installation environment and quantity. We can help with product selection, documentation and the next steps.
