The details that shape your entrance.

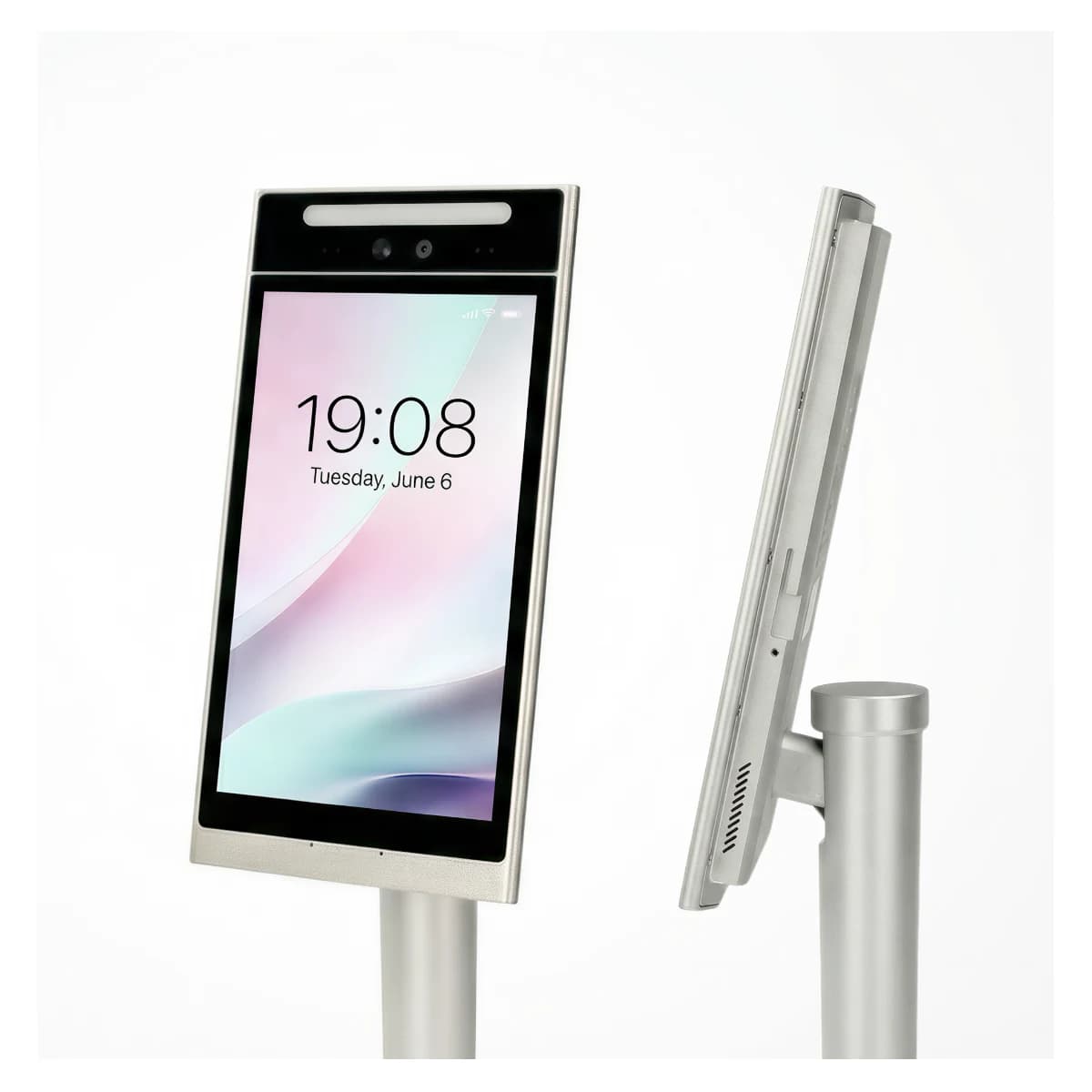

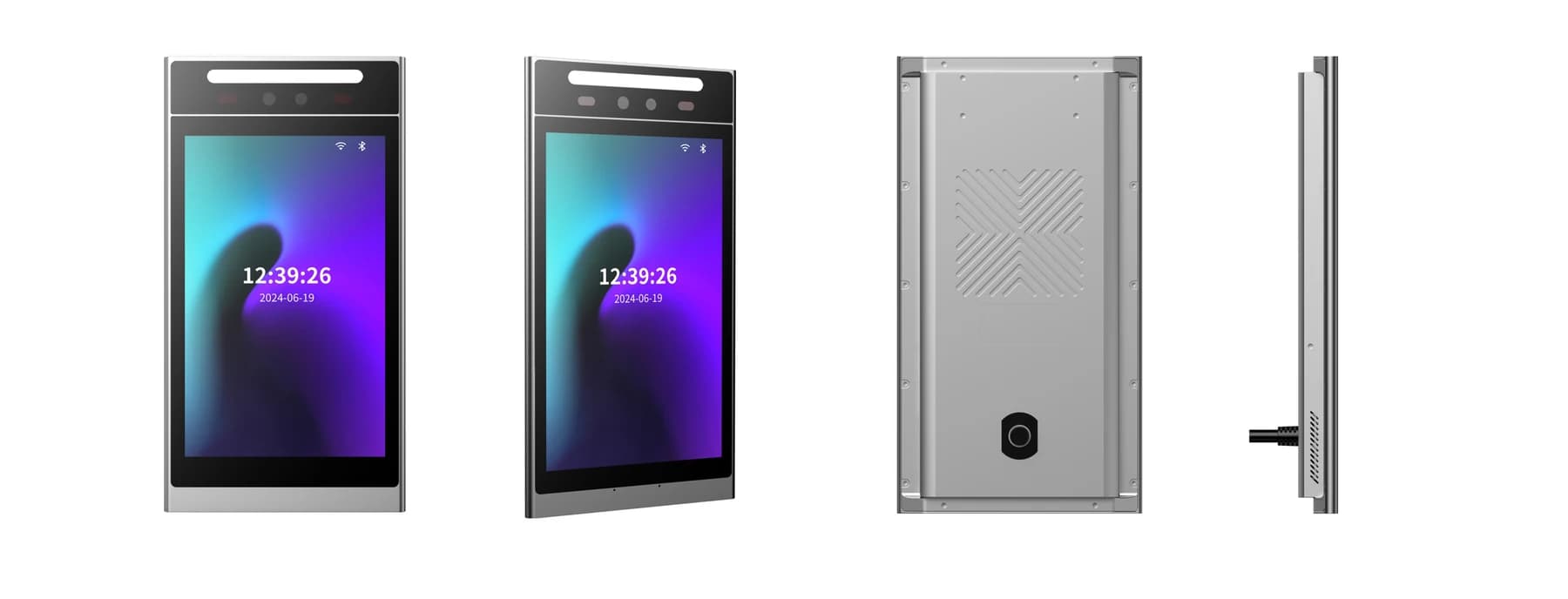

An 8-inch touch interface for identity and access workflows. Explore the front, rear and profile, then choose the mounting arrangement for your entrance.
Face Terminals

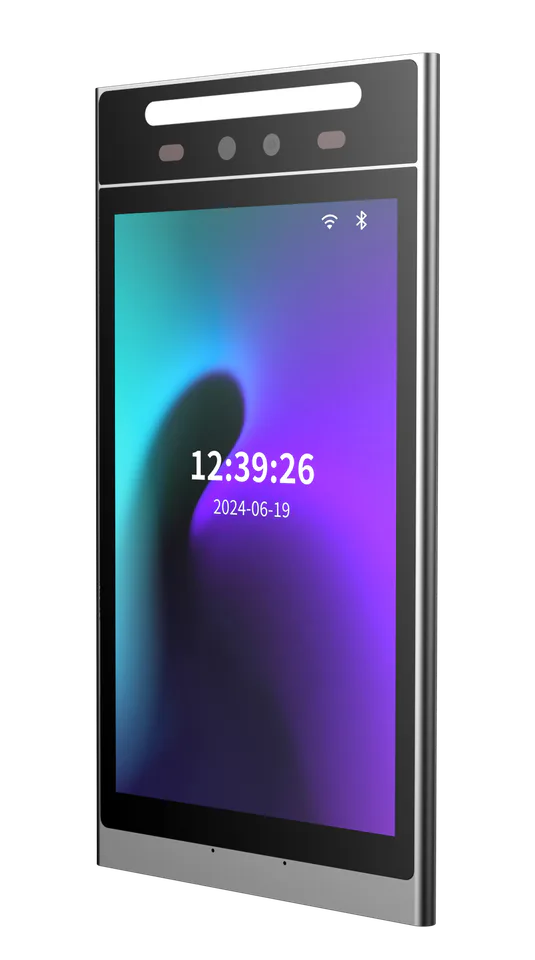

FCV5005
8-inch face authentication terminal
Access, attendance and interactive identity workflows
Explore DejaOS development ↗An 8-inch interaction point.
A portrait touch display brings identity and access workflows to the device. Select the credential modules and application software for your project.
Build around your workflow.

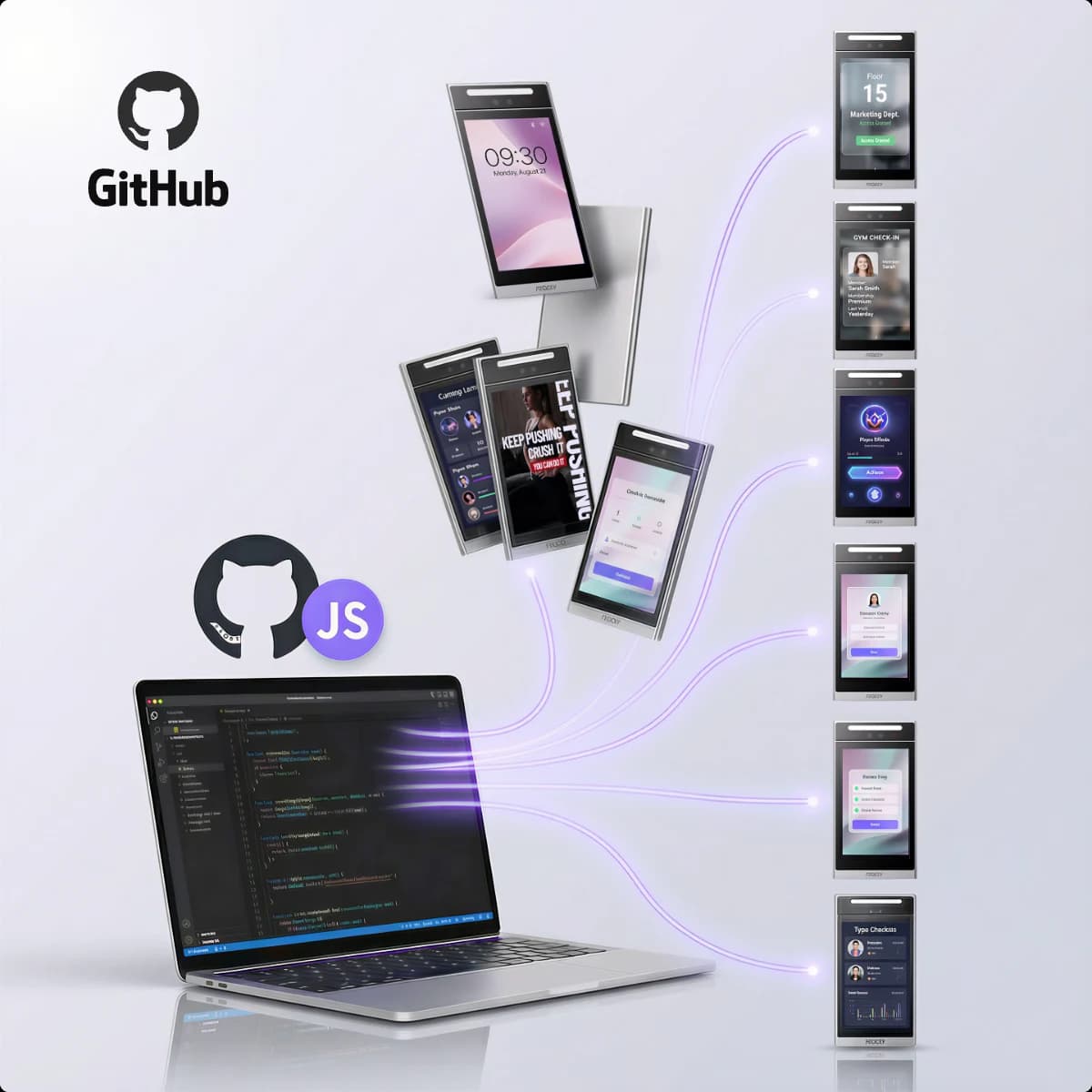

Develop device applications with DejaOS. Discuss the application, reader modules and integration scope with our team before selecting a configuration.

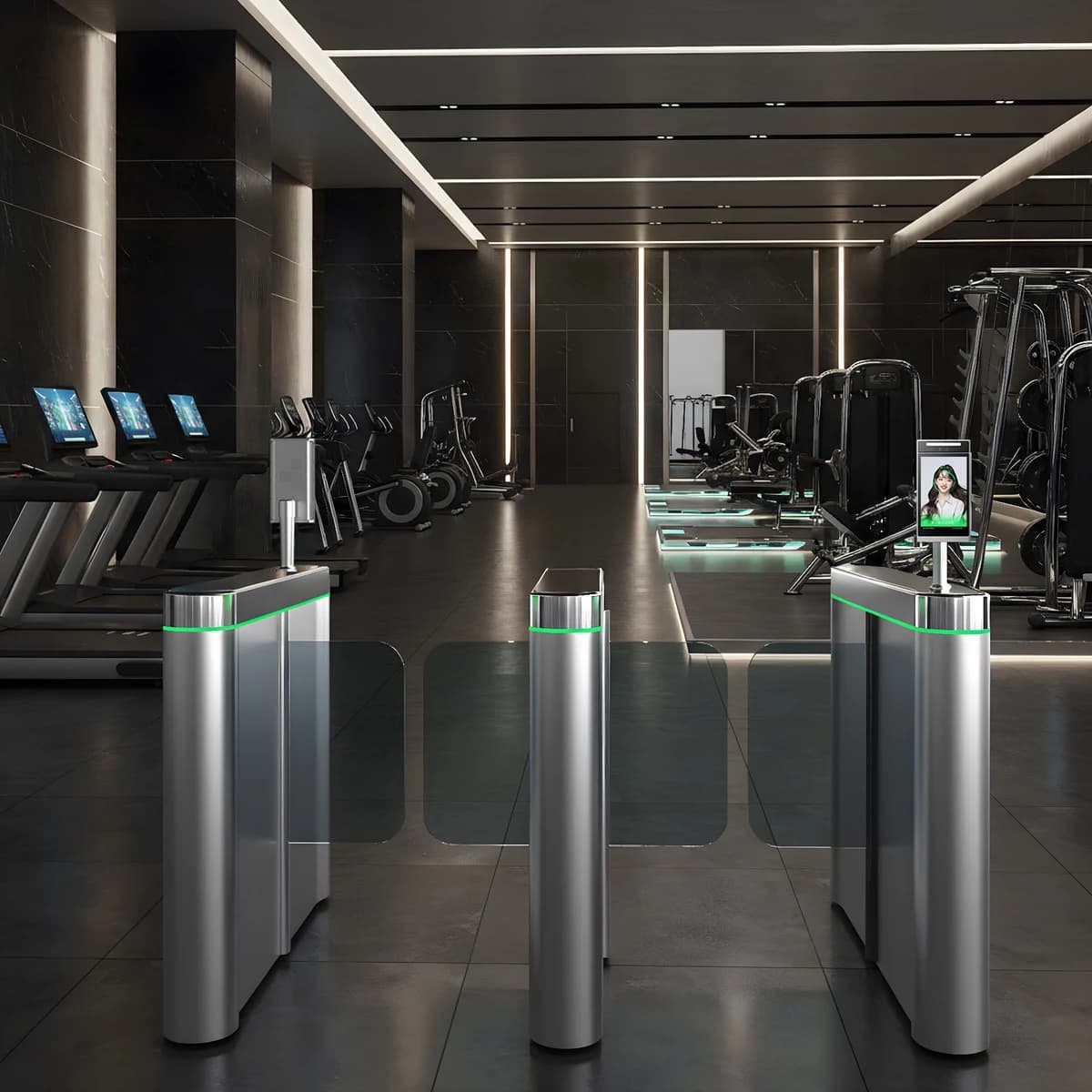

At the entrance
Bring the interaction into the space.
Discuss member check-in, employee access or visitor entry. The terminal, mounting hardware and software workflow are selected together for the project.
Plan your installation ↓Specifications at a glance.
| Operating system | Linux |
|---|---|
| Display | 8-inch LCD touch screen · 800 × 1280 pixels |
| Processor | Dual-core ARM Cortex-A7 · 1 GHz |
| Storage | 8 GB; expanded storage is configuration dependent |
| Host interfaces | Ethernet, RS485 and Wiegand 26/34; confirm the selected cable set |
| Wireless options | 2.4 GHz Wi-Fi and 4G options; confirm the required modules and region |
| Power input | 9–24 V DC · 12 V recommended |
Modules, accessories and software are selected for the project. Features described as options are not included in every configuration.
Plan the installation.
- Choose the wall-mount or pedestal configuration to suit the installation point. Confirm the bracket, cable routing and required accessories before ordering.
- Plan the Ethernet or wireless connection together with RS485, Wiegand and door-control wiring. Wireless modules and card readers depend on the selected configuration.
Start with your application.
- Visitor entry
- Employee access and attendance
- Video intercom workflows
- Member and venue check-in
Application directions for discussion. Compatibility and software scope are confirmed for the selected configuration.
Explore use cases →Manuals & specifications.
Looking for the FCV5005 manual, specification or installation drawing? Tell us which information you need and we will help identify the right document.
Request documentsA few things worth knowing.
What lighting conditions should we consider?
Strong backlight, direct sunlight, reflections and close-range lighting can reduce capture quality. Evaluate the terminal in its intended position and avoid pointing the camera directly toward a bright window or concentrated light source.
What kind of enrollment photograph should we use?
Use a clear, front-facing JPG without beauty filters, heavy makeup, sunglasses, a mask or other facial obstruction. File size and image dimensions can vary by software and model, so confirm the current import requirements before preparing a large enrollment set.
What should we confirm before connecting a face terminal to the network?
Confirm whether the selected configuration uses wired networking, Wi-Fi or another connection method, then collect the network and platform settings required by that system. A local network connection does not by itself prove that the device is connected to the management service, so verify both states separately.
What is DejaOS used for?
DejaOS provides a JavaScript development environment for supported devices. Developers can build device interfaces and application workflows using the modules available for the selected hardware, SDK and firmware.
Does every Feocey product support DejaOS?
No. Check support for the exact overseas model and configuration before choosing a development device. Use the current official documentation and confirm the matching SDK, firmware and hardware modules.
What should I share when choosing a device?
Tell us which credentials people will use, where the device will be installed, which interfaces are required and what should happen in the software workflow. A mounting drawing, host-equipment description or simple process diagram helps us identify the questions that must be confirmed before recommending a configuration.
FCV5005 / Your next step
Let’s find your configuration.
Tell us your application, installation environment and quantity. We can help with product selection, documentation and the next steps.
